Aggregating numbers

It is possible to Aggregate the many values in a defined collection of nodes into one number using one of the Aggregator functions:

• sum Sum
• avg Average
• cnt Count
• max Maximum
• min Minimum

Note that aggregators only work for numerical properties

Sum

To calculate the total amount paid out as bonuses for all nodes

Specify the collection and add the aggregator sum

nodes().currentBonus specifies the collection on which you want to perform the operation – “Current bonus” for all employees. Putting ‘sum’ after the collection will add all numbers within the collection and return the result as one number which in the example shown is 8494841

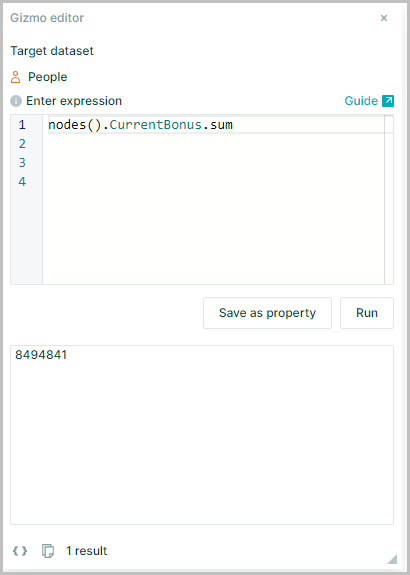

nodes().CurrentBonus.sum

Sum and Format

Format the sum of bonuses to includes "," between 000's

The sum of bonuses can be formatted as 8,494,841 by putting format("0.") at the end of the expression

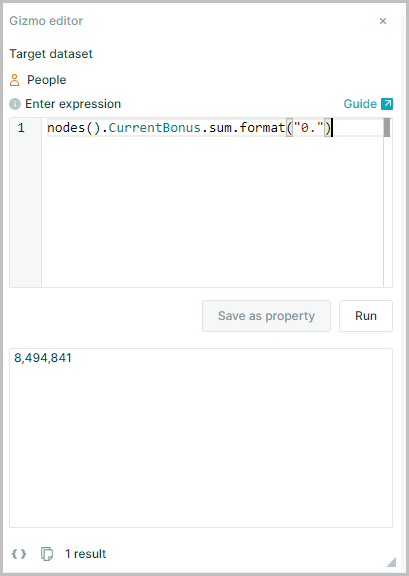

nodes().CurrentBonus.sum.format("0.")

Note_: using .format() for rounding a number returns the result as a string and not a number

To return the result as a number, use .round(), .floor() or .ceil()

Average of Direct Reports

To calculate average “Performance ranking” of a manager’s direct reports rounded to one decimal place

Aggregators may be used in combination with Relationship Operators such as c, s, p and d

Specify the collection and add the aggregator avg

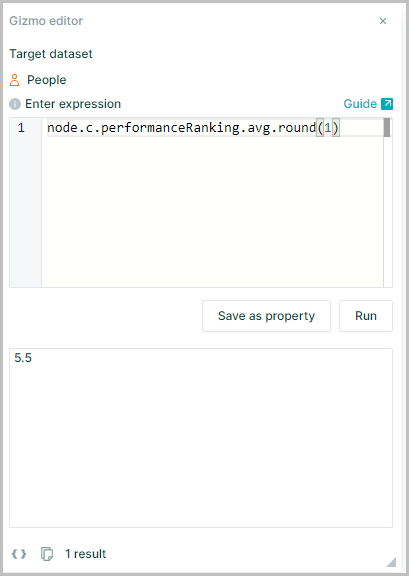

node.c.performanceRanking.avg.round(1)

node.c.performanceRanking defines the collection you want to perform an operation, i.e. performance ranking of the children of the selected node

The aggregator .avg will take the averages of all the values (performance ranking) in the collection and return it

.Round(1) then rounds the result to one place

Distinct Cnt

To see the number of unique entries for "Hours Worked Per Week"

Use distinct.cnt

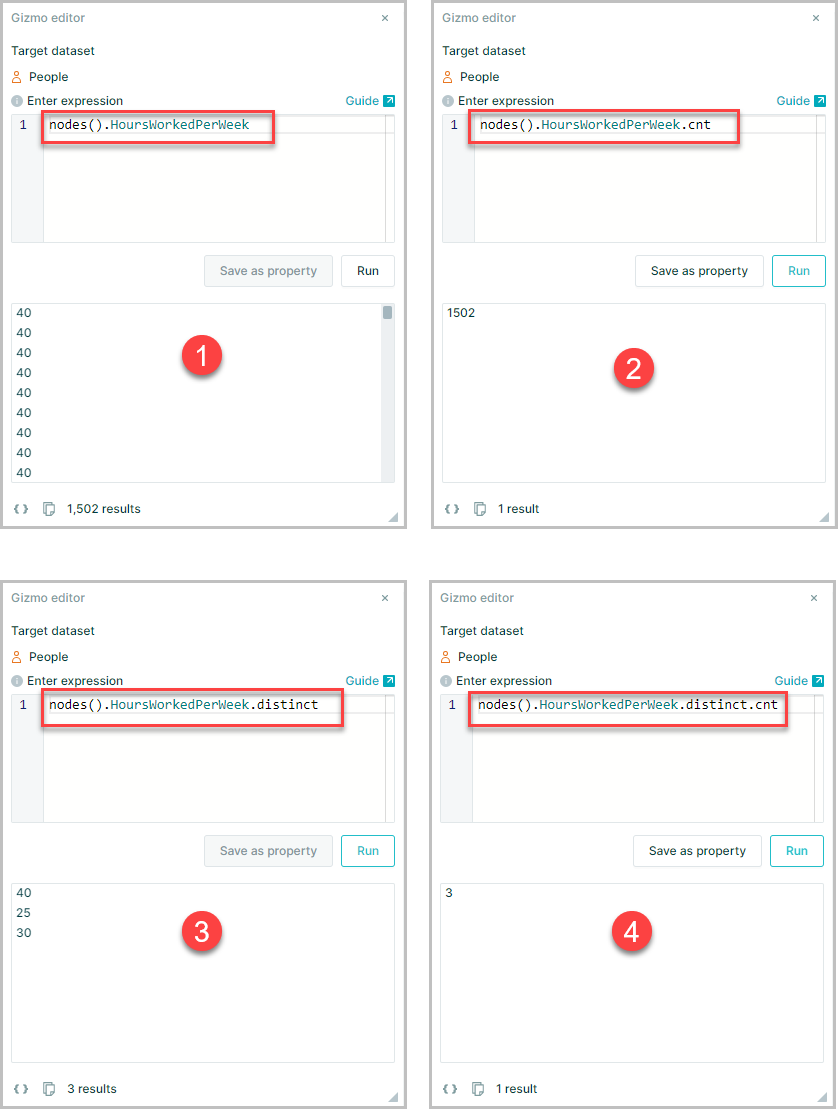

nodes().HoursWorkedPerWeek.distinct.cnt

1. nodes().HoursWorkedPerWeek will return the list of hours per week for the whole organization
2. nodes().HoursWorkedPerWeek.cnt will count the values within the defined collection – 1502
3. nodes().HoursWorkedPerWeek.distinct returns the same collection without repeated values – 40, 25, 30.
4. nodes().hoursWorkedPerWeek.distinct.cnt counts the distinct values in the collection – 3.

Note: .cnt only counts numbers in the collection for text properties count should be used as this will count values whether they are numbers or not

Distinct Count

To see the number of unique entries for "Department"

Use distinct.count

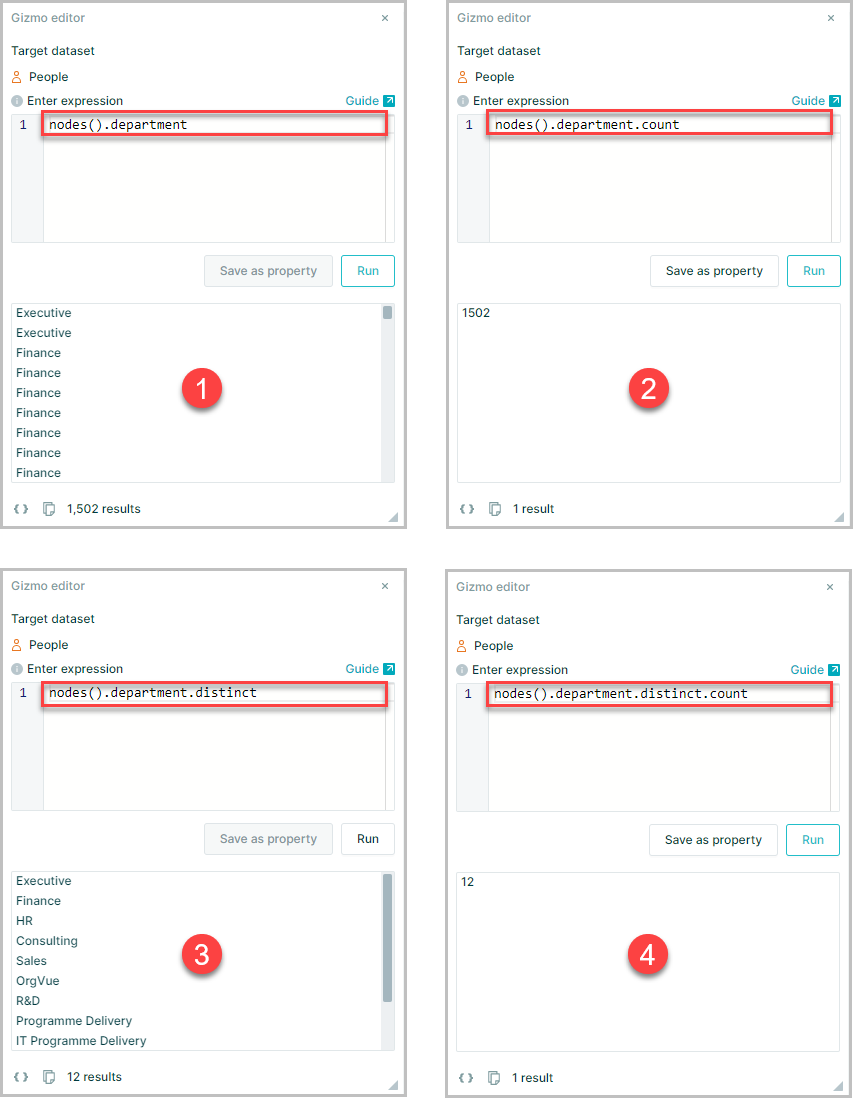

nodes().Department.distinct.count

1. nodes().Department will return the list of Departments for the whole organization
2. nodes().Department.count will count the values within the defined collection – 1502
3. nodes().Department.distinct returns the same collection without repeated values – Executive, Finance, HR, Consulting etc
4. nodes().Department.distinct.count counts the distinct values in the collection – 12

cnt or count

• .cnt only counts numbers in the collection
• .count is the length of the collection, i.e. total count of values whether they are numbers or not

In the examples above counting the distinct values for "hoursWorkedPerWeek" .cnt should be used while counting the number of distinct "departments" requires the use of .count

Max

To calculate the maximum salary of anyone in the dataset

Specify the collection and add the aggregator max

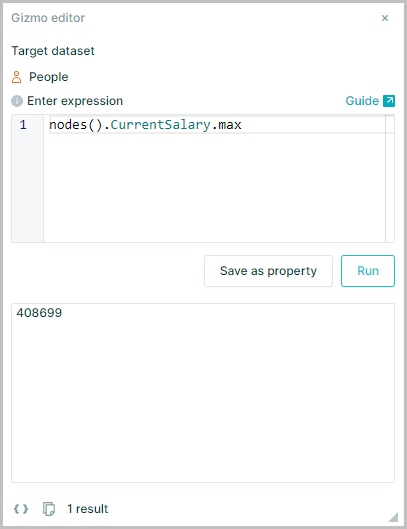

nodes().CurrentSalary.max

nodes().currentsalary specifies the collection on which you want to perform the operation – “Current salary” for all employees. Putting .max after the collection will find the maximum of all numbers within the collection.

Max of Children

To calculate the minimum Performance Ranking of anyone in a team

Specify the collection and add the aggregator min.

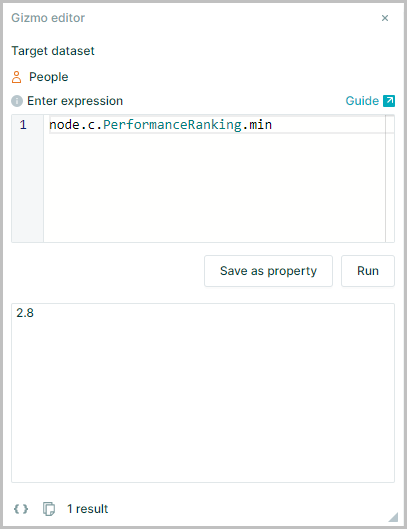

node.c.PerformanceRanking.min

node.c.performanceRanking specifies the collection on which you want to perform the operation “Performance Ranking” for all the direct reports of the selected employee. Putting .min after the collection will find the minimum of all numbers within the collection.
