Viewing statistics

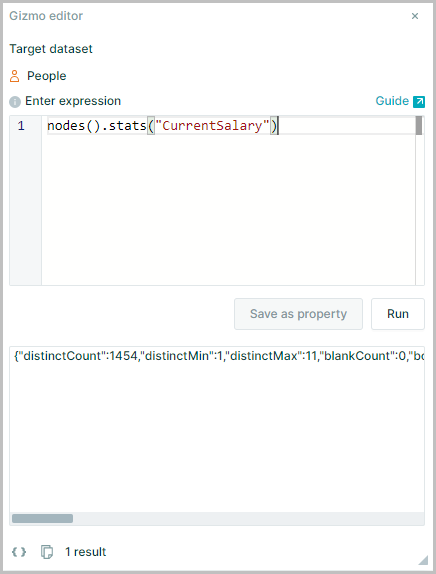

The expression nodes()stats("[PropertyKey]") will return an array of descriptive statistics relating to the selected Property Key


Available statistics are:

StatisticName
distinctCountDistinct Count
distinctMinDistinct Min
distinctMaxDistinct Max
blankCountBlank Count
booleanCountBoolean Count
dateCountDate Count
numberCountNumber Count
textCountText Count
avgAverage
minMinimum
maxMaximum
sumSum
lengthLength
countCount
cntCnt
sumSquaresSum of Squares
firstQuartileFirst Quartile
medianMedian
thirdQuartileThird Quartile
iqrInterquartile Range
meanMean
rangeRange
stddevStandard Deviation
varianceVariance

Adding a dot at the end nodes().stats("[PropertyKey]").[statistic] allows you to call one of the specific statistics for the selected property

Statistics All Nodesโ€‹

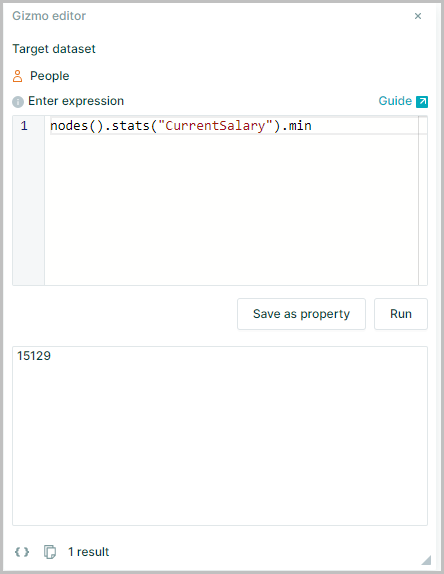

To calculate the minimum salary of the whole organization

Assuming the field (PropertyKey) for which the minimum is required is Current Salary, use

nodes().stats("Current Salary").min


Statistics for Subset of Nodesโ€‹

To perform a calculation on a subset of dataset, filter() and n => n needs to be nested in the expression

See Filtering and Lambda expressions for further explanation of filter() and n => n

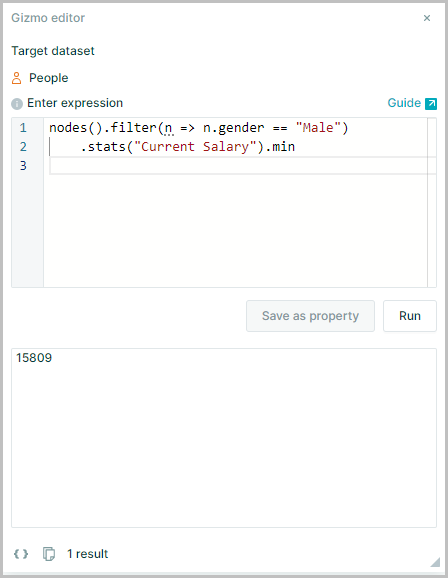

So to find the minimum salary of just male employees use

nodes().filter(n => n.gender == "Male").stats("Current Salary").min


Statistics Node Bucketsโ€‹

.bucketStats() efficiently calculates the descriptive statistics for a bucket intersection

Use the format .bucketStats([bucket keys], measure) to perform the aggregation

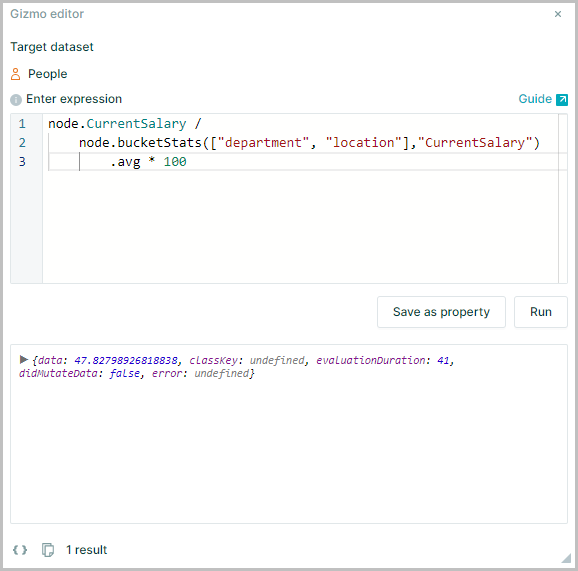

For example this could allow the comparison of the salary of an employee against the mean salary of employees in the same cohort expressed as a percentage

node.CurrentSalary / node.bucketStats(["department", "location"], "CurrentSalary").avg * 100


It should be noted that this method will return the result as a string not a number

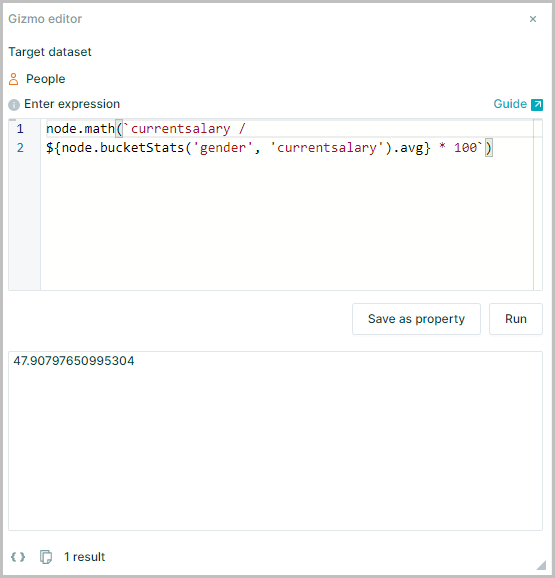

Using node.math() at the start of the expression will return the result as a number rather than a string

node.math(`currentsalary / ${node.bucketStats(["department","location"], "currentsalary").avg} * 100`)


Note: The use of ` backticks around the expression within the Node.math(Expression) and the ${} around the ${node.bucketstats([bucket keys])}

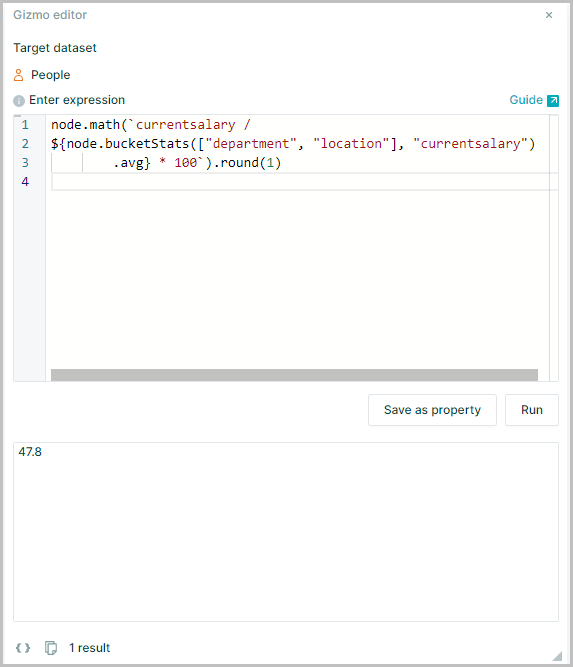

Returning the result as a number has the benefit of being able to chain round or format

node.math(`currentsalary / ${node.bucketStats(["department", "location"], "currentsalary").avg} * 100`).round(1)
